Technical Specifications |
||
|

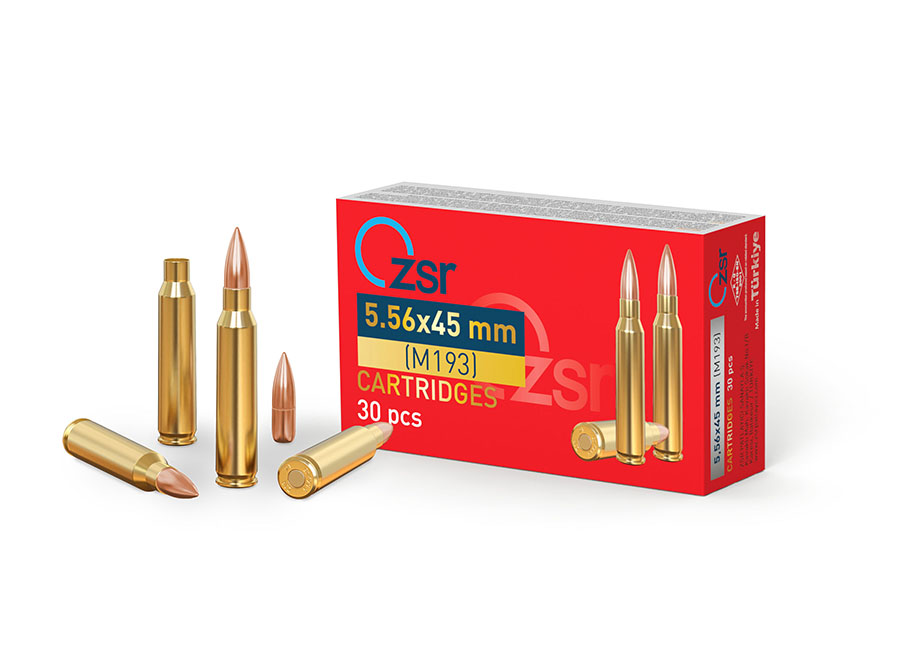

M193 BALL |
M196 TRACER |
|
|
Bullet Weight |
55 gr (~ 3.56 g) |
54 gr (~ 3.50 g) |
|
Bullet Metarial |
Jacket – Tombac/CuZn10 Core - Lead Antimony |
Jacket - Tombac plated steel strip or copper washer steel strip Strip Core - Lead Antimony Tracer - Tracer Composition |
|
Bullet Lenght |
19,17 mm |
23,2 mm |
|
Case Metarial |
Brass CuZn30 |
|
|
Case Lenght |
44.7 mm |
|
|
Primer Type |
Boxer non corrosive |
|
|
Powder Type |
Double Base Powder |
|
|
Chamber Pressure |
Pmax + 3Sd ˂ 4450 Bar |
|
|
Port Pressure |
Port – 3Sd > 1030 Bar |
|
|
Velocity (m/s) at 24 m |
965 ± 15m/s |
950 ± 15m/s |
|
Accuracy Rs |
Max. 5,08 cm at 200 m |
Max. 12,7 cm at 200 m |
|
Action Time |
˂ 3 ms |
|
|
Extraction Force |
Min. 20,4 kgf/200N |
|
|
Catridge Lenght |
57,4 mm |
|
PACKING 1
30 rounds in cardboard box
15 cardboard boxes (450 rounds) in PVC bag
5 PVC bags (2.250 rounds) in wooden case
PACKING 2
200 rounds in metal link belt M27
4 metal link belts in metal box M2A1 (800 rounds)
2 metal boxes M2A1 (1600 rounds) in wire bound wooden box
